Built for Auto Body Success
The Competitive Edge for Independent Auto Shops

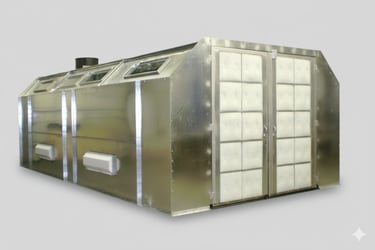

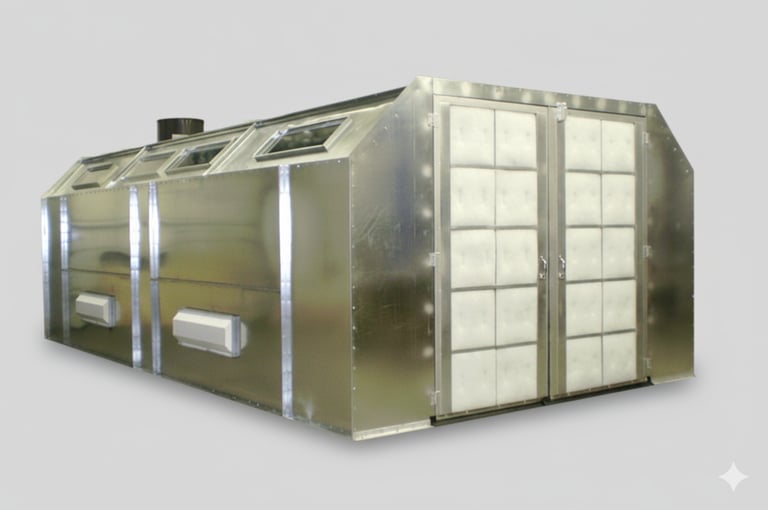

AlphaAuto™ Series
Air Flow Configuration: Cross Flow
Working Area: 14' W X 9' H X 26' L
Overall Dim: 14'3" W X 9'2" H X 26'5" L
Entrance Door Size: 10'W X 9'H
Fan System: Tube axial fan with 3-phase motor 20,000 CFM

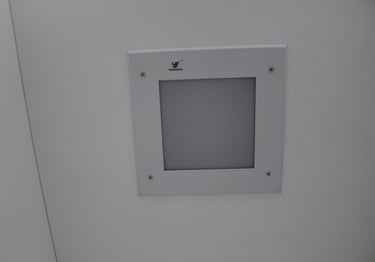

Lighting Fixture: LED/Tube Light Fixture
Filtration: Intake and Exhaust Filters

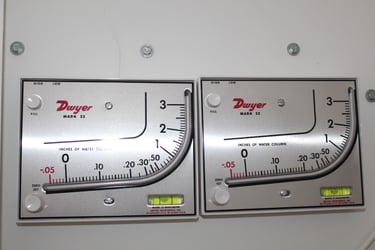

Manometer: Dwyer Mark II (Made in USA)
Construction Material: Air tight 18-gauge high grade Galvanized steel
Personnel Access: Side door with clear glass
No Ducting Required
Designed As per USA NFPA 33 Standards
Working Area: 30” X 30” X 42” inch
Overall Dim: 40” X 60” X 90” inch
Motor: 1 HP, 3 Phase, 415 V, 50 Hz, TEFC, Flameproof Motor

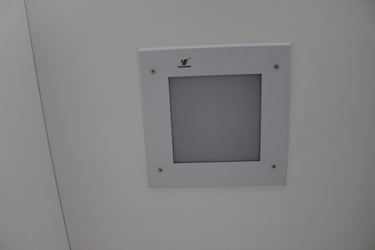

Light: LED Light, Single Phase, 220 V, 50 Hz
Filters: 4 Stage Filtration, 1 Pre Filter, 1 Exhaust Filter, 1 Pleated Filter, 1 Activated Carbon Filter
Manometer: Dwyer Mark II (Made in USA)

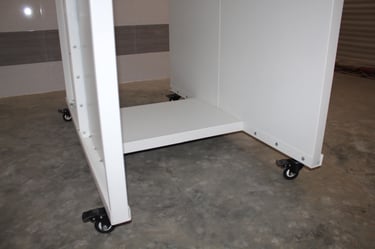

Caster Wheels with lock mechanism
Air Flow: More than 100 CFM

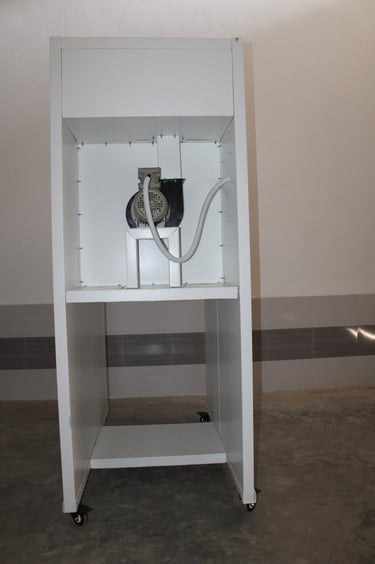

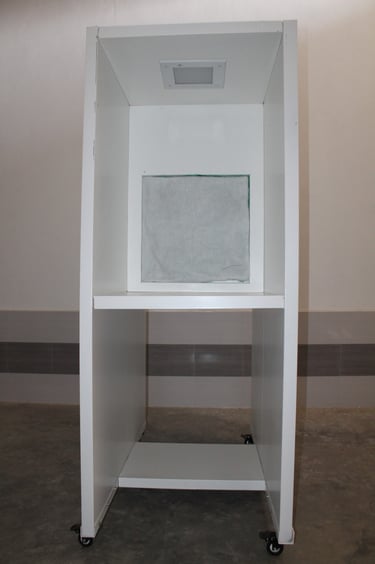

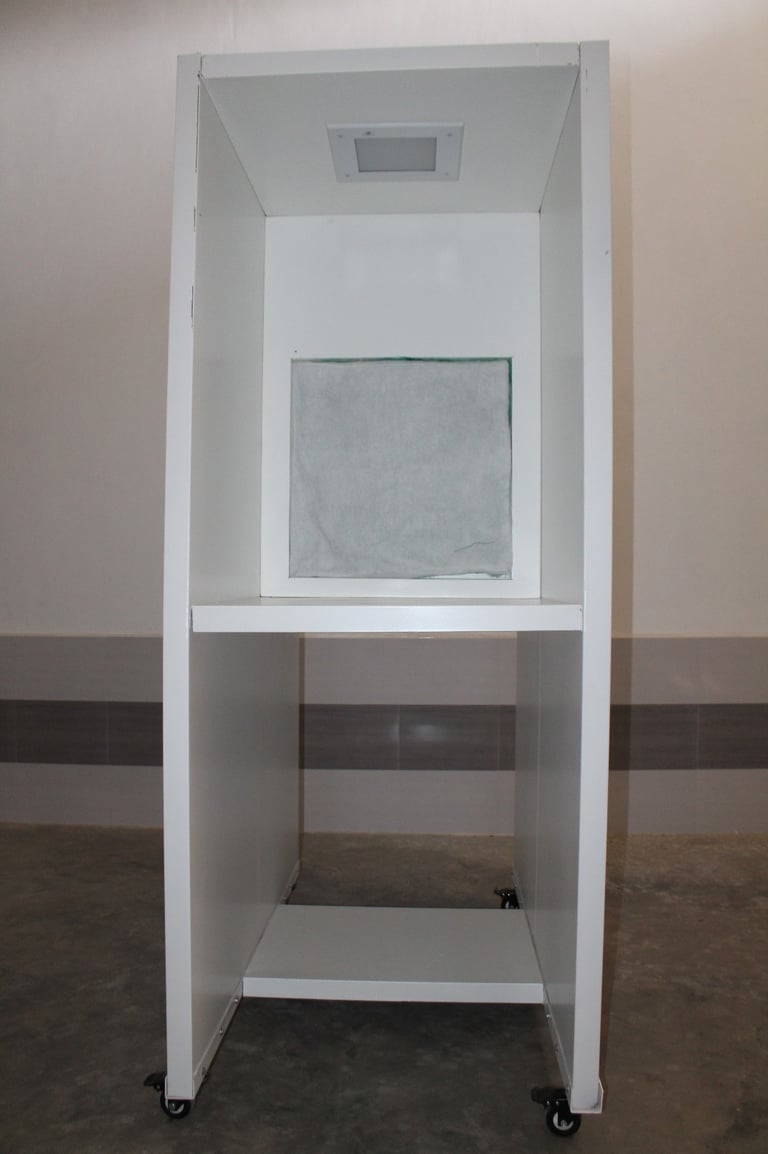

Ductless Small Paint Spray Booth for Lab

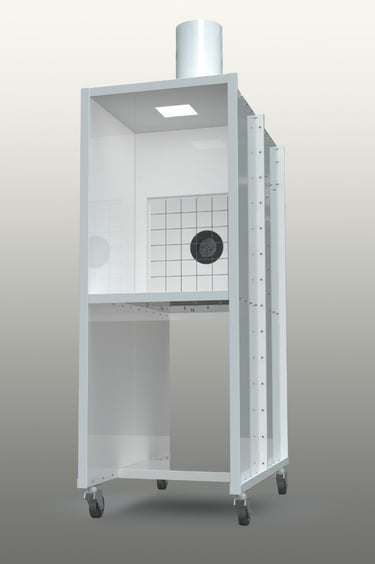

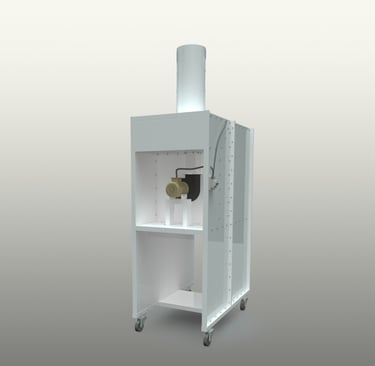

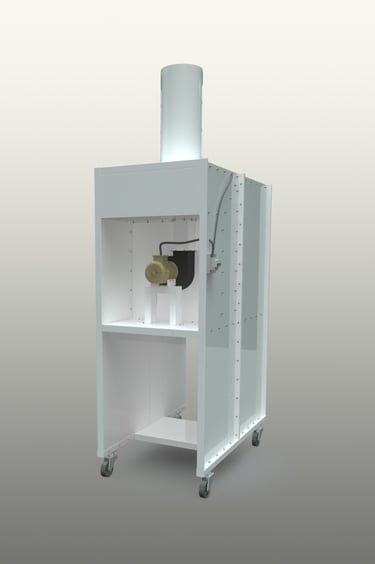

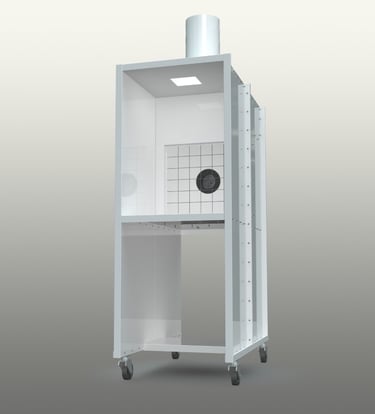

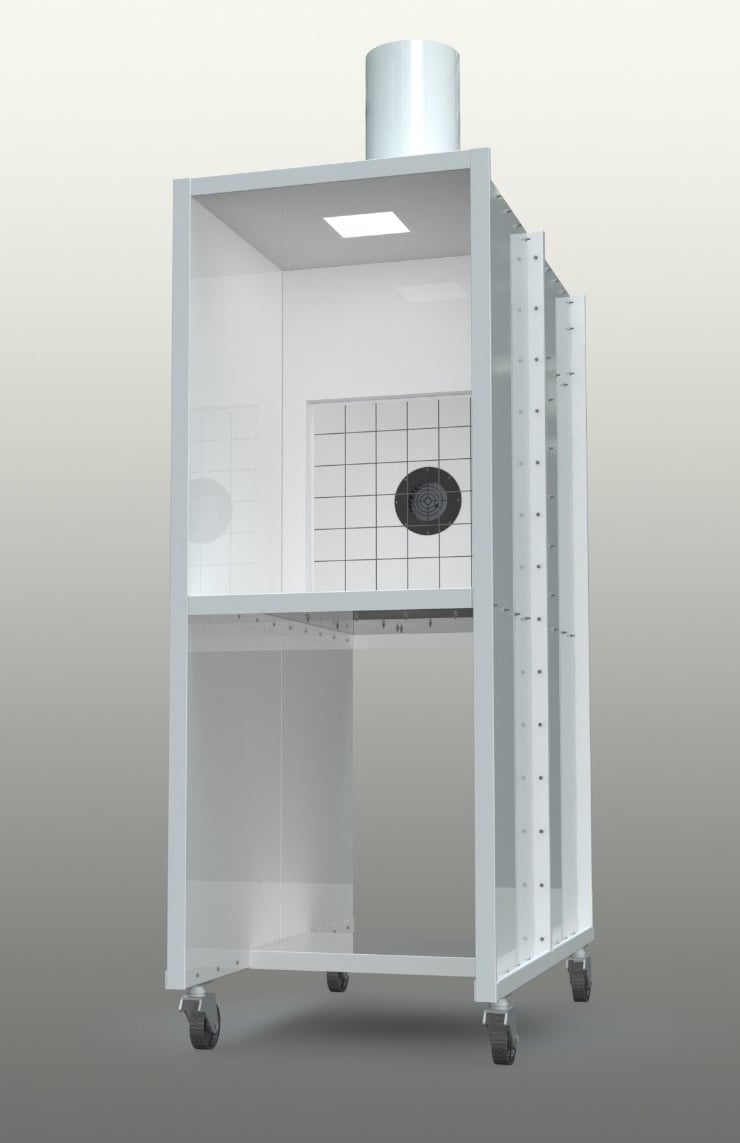

Paint Spray Booth with Ducting
Designed As per USA NFPA 33 Standards
Working Area: 30” X 30” X 42” inch
Overall Dim: 40” X 60” X 90” inch
Motor: 1 HP, 3 Phase, 415 V, 50 Hz, TEFC, Flameproof Motor
Light: LED Light, Single Phase, 220 V, 50 Hz
Filters: Exhaust Filter

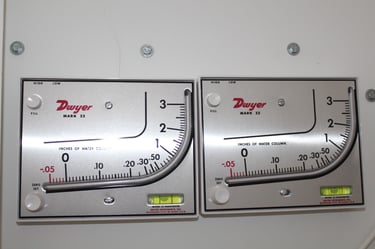

Manometer: Dwyer Mark II (Made in USA)
Caster Wheels with lock mechanism
Air Flow: More than 100 CFM

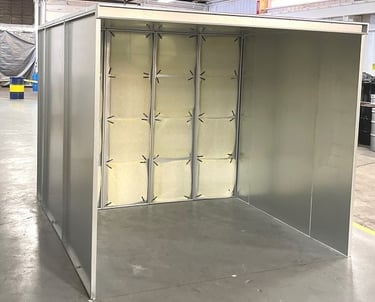

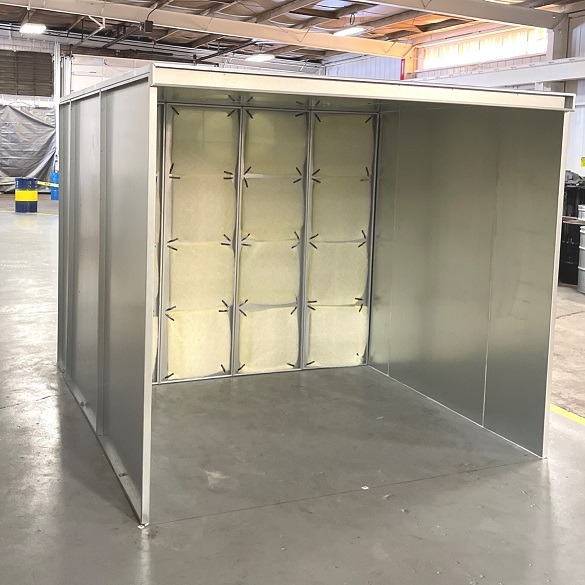

Open Face Paint Booths
Custom Spray Booths
Tailored solutions to meet your specific painting needs and operational requirements.
Accessories and Parts
Comprehensive range of accessories to enhance your paint booth functionality and efficiency.
Custom Spray Booths
Designed As per USA NFPA 33 and OSHA Standards
Gallery
Explore our innovative ductless paint spray booths and accessories.
